Anterolateral minithoracotomy versus median sternotomy for the treatment of congenital heart defects: a meta-analysis and systematic review
Journal of Cardiothoracic Surgery volume 7, Article number: 43 (2012)
Anterolateral Minithoracotomy (ALMT) for the radical correction of Congenital Heart Defects is an alternative to Median Sternotomy (MS) due to reduce operative trauma accelerating recovery and yield a better cosmetic outcome after surgery. Our purpose is to conduct whether ALMT would bring more short-term benefits to patients than conventional Median Sternotomy by using a meta-analysis of case–control study in the published English Journal.
6 case control studies published in English from 1997 to 2011 were identified and synthesized to compare the short-term postoperative outcomes between ALMT and MS. These outcomes were cardiopulmonary bypass time, aortic cross-clamp time, intubation time, intensive care unit stay time, and postoperative hospital stay time.
ALMT had significantly longer cardiopulmonary bypass times (8.00 min more, 95% CI 0.36 to 15.64 min, p = 0.04). Some evidence proved that aortic cross-clamp time of ALMT was longer, yet not significantly (2.38 min more, 95% CI −0.15 to 4.91 min, p = 0.06). In addition, ALMT had significantly shorter intubation time (1.66 hrs less, 95% CI −3.05 to −0.27 hrs, p = 0.02). Postoperative hospital stay time was significantly shorter with ALMT (1.52 days less, 95% CI −2.71 to −0.33 days, p = 0.01). Some evidence suggested a reduction in ICU stay time in the ALMT group. However, this did not prove to be statistically significant (0.88 days less, 95% CI −0.81 to 0.04 days, p = 0.08).
ALMT can bring more benefits to patients with Congenital Heart Defects by reducing intubation time and postoperative hospital stay time, though ALMT has longer CPB time and aortic cross-clamp time.
The Anterolateral Minithoracotomy (ALMT) is a cardiovascular surgery technique in the purpose of reducing the surgical trauma so that to accelerate recovery and promote the cosmetic outcome, especially for the young female . There have been numerous studies on this subject. Most try to find out that ALMT brings more short-term benefits to patients than MS, such as intubation time, ICU stay time and postoperative hospital stay time [2–7]. Some illustrate the long-term outcome measures in the ALMT group comparing with the MS group . Some introduce their long-term experience on ALMT but do not set the control group [9–17]; others were ambiguous. However, there are some studies complaining about the lung injury resulted from one-lung ventilation applied in ALMT [18–20]. No meta-analysis has been done on ALMT before. Our purpose is to conduct whether ALMT would bring more short-term benefits to patients than conventional MS.
Search for all relevant published articles in English was performed in GOOGLE SCHOLAR, MEDLINE, CENTRAL and EMBASE databases starting from 1997. We assessed the eligibility of every study by more than one author during the search. Our searching keywords were Anterolateral Minithoracotomy, Median Sternotomy, Congenital Heart Defect, Septal Defect, Tetralogy of Fallot and Patent Ductus Arteriosus. Reference lists of every relevant article were searched as well. Because of a lack of randomized controlled trials in this subject, case–control studies were included as an alternate.
Study selection criteria
We selected the studies according to the following inclusion criteria: (1) the type of studies: RCT should be firstly considered. However, we found a lack of RCT or other prospective studies in ALMT studies. Case–control studies were selected instead; (2) participants: children and adult patients with Congenital Heart Defects undergoing ALMT. The exclusion criteria were: (1) any other type of minimally invasive surgeries; (2) the language of the article was not English; (3) the study did not set a control group, or the control group was not MS.
Our outcome measures included cardiopulmonary bypass time, aortic cross-clamp time, intubation time, ICU stay time and postoperative hospital stay time.
Review Manager (RevMan) V.5.0 was used for statistical analysis. Because the data was continuous, mean differences were measured. We tested heterogeneity by using the χ² test, I² test and degrees of freedom, and we chose to use the random effects model presuming that outcome measures of each study were variable. In this meta-analysis, the risk of bias was not assessed.
Two-lumen endotracheal intubation for one-lung ventilation were performed. The skin incision (4–8 cm in length) in the right anterolateral submammary groove through the 4th intercostal space was performed, with minimal rib spreading.To achieve better operative vision, a soft tissue retractor should be employed and both of the right lung and right lobe of the thymus gland should be retracted posteriorly. The superior caval vein was cannulated percutaneously after anesthesia. The right femoral artery and vein were exposed through a small (about 2–3 cm) inguinal incision and cannulated. After the systemic administration of heparin, 28°C-32°C hypothermic cardiopulmonary bypass (CPB) was instituted. Both caval veins were surrounded with tape for ligation and a transthoracic aortic cross-clamp were prepared through the third intercostal space at the anterior and midaxillary line. Myocardial protection was achieved with antegrade cardioplegic solution infusion through the root cannula at the ascending aorta. The defects were repaired with a patch or direct closure. The cardiac anomalies were corrected in almost the same manner as a median sternotomy.
Finally, 5 references were selected, including 6 case–control studies, according to our meta-analysis [Table 1[2–6]. One reference  included two separate studies called Virgilijus Tarutis 1 2009 (124 patients with Atrial Septal Defect), and Virgilijus Tarutis 2 2009 (70 patients with Ventricular Septal Defect). Excluded studies [Figure 1 were either overlapped (n = 40), irrelevant (n = 191), not English (n = 5), different type of incisions (n = 10), not expected outcome measures (n = 1), or no control groups (n = 17). One reference  was highly relevant to our study but written in Chinese. At last, we found 30 studies, in which 6 studies met our criteria. 932 patients were included (384 Atrial Septal Defect, 85 Ventricular Septal Defect, 13 Partial Anomalous Pulmonary Venous Connection, 15 Partial Atrioventricular Canal, 3 Tetralogy of Fallot, 3 Cor Triatriatum, 12 Congenital Mitral Valve Defect, 2 Pericardial Cysts, 415 in the control group not mentioned), on operation interventions 263 undergoing ALMT and 669 MS.
Table 1 illustrates detail characteristics of these 6 studies. The following results are presented as mean differences in outcome measures between ALMT and MS in the random effects model.
Cardiopulmonary bypass time (min)

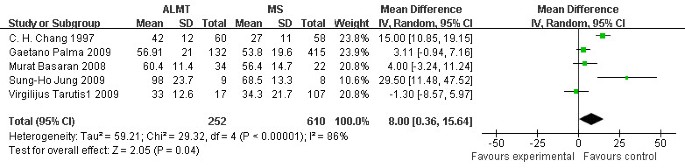

Cardiopulmonary bypass time (CPB time) is a useful operative measure to compare the difficulty among different cardiovascular surgery. The ALMT group had a significant longer CPB time (8.00 min more, 95% CI 0.36 to 15.64 min, p = 0.04). One study (Virgilijus Tarutis 2 2009 ) was not included without CPB time [Figure 2.
Aortic cross-clamp time (min)
Aortic cross-clamp time (ACCT) can also imply the difficulty of a cardiovascular surgery. There were two studies not mentioning ACCT ( [C. H. Chang 1997 3] and [Virgilijus Tarutis 2 2009 5]). Though other four studies proved a longer aortic cross-clamp time in ALMT, but it was insignificant (2.38 min more, 95% CI −0.15 to 4.91 min, p = 0.06) [Figure 3.
Intubation time (hrs)
Intubation time can represent the degree of impairment of lung function in patients undergoing thoracotomies. There was a statistically significant reduction in intubation time. This was 1.66 hrs less in the ALMT group (95% CI −3.05 to −0.27 hrs; p = 0.02) [Figure 4].
ICU stay time (days)
ICU stay time is a sensitive indicator suggesting the recovery of postoperative patients. As illustrated in Figure 5, ICU stay time was shortened by 0.38 days in the ALMT group; however, the difference again failed to reach statistically significant levels (95% CI −0.81 to 0.04 days; p = 0.08). The [Gaetano Palma 2009 2] and [Sung-Ho Jung 2009 4] were excluded because of a lack of data of ICU stay time [Figure 5.
Postoperative hospital stay time (days)
Postoperative hospital stay time is another outcome measure demonstrating the recovery of patients after surgery. In Figure 6, the mean difference of all the studies showed that postoperative hospital stay time was significantly shortened by 1.52 days in the ALMT group than the MS group (95% CI −2.71 to −0.33 days; p = 0.01) [Figure 6].
Our meta-analysis was performed to compare the short-term postoperative outcome measures in 6 published studies between Anterolateral Minithoracotomy (ALMT) and Median Sternotomy (MS). The data obtained from the 6 studies was synthesized and a statistical view was drawn on the potential benefits of an ALMT over a full MS for the radical correction of Congenital Heart Defects. The outcome measures were as follow: cardiopulmonary bypass time, aortic cross-clamp time, intubation time, ICU stay time and hospital stay time.
According to our analysis, we found ALMT had a significant longer CPB time (p = 0.04) but a significant shorter time in both intubation time (p = 0.02) and postoperative hospital stay (p = 0.01). There was no previous meta-analysis showing this trend. The reduction in postoperative hospital stay time by 1.52 days (p = 0.01) and ICU stay time by 0.38 days (p = 0.08) can bring potential financial advantages to patients with Congenital Heart Defects.
ALMT uses the technique called “one-lung ventilation” in order to fully expose to the surgery field. Some researches on “one-lung ventilation” pointed out the possibility of lung injury induced by one-lung hyperventilation, stretch of lung and pleural damage [18–20]. If the lung injury happened more severe during ALMT, the intubation time should be longer than MS. However, we found intubation time did not become longer in the ALMT group according to our analysis. It was proved that shorter intubation time by 1.66 hrs (p = 0.02) implied the lung injury would not induce worse short-term outcomes in patients with Congenital Heart Defects undergoing ALMT. More studies should be taken to find out the reasons.
MS has been the conventional approach for the correction of cardiac defects. However, ALMT have been applied more widely in both adult and pediatric populations, especially in females. The incisions of ALMT range 4–8 cm [2–7, 21], while those of conventional MS were much longer and more unsightly. One research estimated the satisfactions of the cosmetic result of ALMT, and found 282 (91.5%) of 308 patients were satisfied . Another advantage of ALMT is that it maintains the continuity and integrity of the bony thorax, thereby preventing pectus carinatum.
This study was limited as it only included 6 case–control studies, with variable outcome measures. No randomized controlled trials or other prospective studies were searched out. The risk of bias was not assessed during this meta-analysis. The total number of patients included in this study was 932, but the composition of the sample was complex and farraginous, different from the general population. At the beginning we wanted to limit our study to one single disease. But it was difficult to find enough studies. Another problem was that some studies lacked operative data. There were two studies not mentioning aortic cross-clamp time (C. H. Chang 1997 and Virgilijus Tarutis 2 2009), two studies not mentioning ICU stay time (Gaetano Palma 2009 and Sung-Ho Jung 2009), and one study not mentioning CPB time (Virgilijus Tarutis 2 2009 ). All above would weaken the probative force of our meta-analysis results.
Three meta-analyses have already been performed comparing mini-sternotomy versus conventional sternotomy for aortic valve replacement [1, 22, 23], including randomized controlled trials and non-randomized studies. They concluded that mini-sternotomy can be performed safely for aortic valve replacement without an increased risk of death or any major complications , or a reduction of ICU stay time , or with no clinical benefits . On the other hand, we excluded nine studies with no control groups [9–17, 21], ranging from 10 to 683 in the sample size. But it was hard to ignore these studies. These studies, with 1642 patients in total, summarized the long-term clinical experience on ALMT useful to make clinic decision and ensure the safety of ALMT.
ALMT can bring more benefits to patients with Congenital Heart Defects by reducing intubation time and postoperative hospital stay time, though ALMT is a more complex surgery process with longer CPB time and aortic cross-clamp time than MS.
Aortic cross-clamp time
intensive care unit
Atrial septal defect
Ventricular septal defect
Congenital heart defect
Randomized controlled trial
Bari M, John RP, Rex DS, Catherine J, Christopher R, Ara D, Thanos A: Minimal access aortic valve replacement: is it worth it?. Ann Thorac Surg. 2008, 85: 1121-31. 10.1016/j.athoracsur.2007.09.038.
Gaetano P, Raffaele G, Veronica R, Sabato C, Sergio P, Marco M, Vincenzo P, Giuseppina L, Carlo V: Anterolateral Minithoracotomies for the Radical Correction of Congenital Heart Defects. Tex Heart Inst J. 2009, 36 (6): 575-579.
Lin PJ, Chang CH, Chu JJ, Liu HP, Tsai FC, Chung YY, Kung CC, Lin FC, Chiang CW, Su WJ, Yang MW, Peter PT: Surgical closure of Atrial Septal Defect minimally invasive cardiac surgery or Median Sternotomy?. Surg Endosc. 1997, 12: 820-824.
Jung SH, Je HG, Choo SJ, Yun TJ, Chung CH, Lee JW: Right or left Anterolateral Minithoracotomy for repair of congenital Ventricular Septal Defects in adult patients. Interact Cardiovasc Thorac Surg. 2010, 10: 22-26. 10.1510/icvts.2009.215038.
Virgilijus T, Virgilijus L, Vytautas S: Surgical alternative – the closure of heart Septal Defects via less invasive approaches. Semin Cardiovasc Med. 2009, 15 (3): 1-6.
Murat B, Ali K, Cihan O, Alper U, Eylul K, Melih U: Comparison of 3 Different Incisions Used for Atrial-Septal Defect Closure. Heart Surg Forum. 2008, 11 (5): 290-294. 10.1532/HSF98.20081060.
Qiao CH, Yan BJ, Zhang X, Zhao GF, Zhang WH, Shi CP: Comparative study of right Anterolateral Minithoracotomy and Median Sternotomy in the repair of Atrial Septal Defects. Di Yi Jun Yi Da Xue Xue Bao. 2003, 23 (9): 956-960.
Vladimiro LV, Massimo AP, Giovanna B, Altin AV, Simone S, Gianclaudio F, Giovanni S: Minimally invasive operation for Congenital Heart Defect: A sex-differentiated approach. J Thorac Cardiovasc Surg. 2009, 138 (4): 933-936. 10.1016/j.jtcvs.2009.03.015.
Nicolas D, Thomas W, Volkmar F, Christian B, Jan B, Michael AB, Jan FG, Friedrich WM, Martin K: Secundum ASD Closure Using a Right Lateral Minithoracotomy: Five-Year Experience in 122 Patients. Ann Thorac Surg. 2003, 75: 1527-1530. 10.1016/S0003-4975(02)04889-0.
Thomas W, Christian B, Ardawan R, Ingo D, Nicolas D, Volkmar F, Friedrich WM, Martin K: Surgical Atrial Septal Defect closure after interventional occluder placement: Incidence and outcome. J Thorac Cardiovasc Surg. 2007, 134: 731-7. 10.1016/j.jtcvs.2007.04.041.
Gerhard WG, Selami D, Tayfun A, Mohammad FK, Stephan M, Christian B, Anton M: Totally endoscopic atrial septal repair in adults with computer-enhanced telemanipulation. J Thorac Cardiovasc Surg. 2003, 126: 465-8. 10.1016/S0022-5223(03)00053-9.
Miguel BM, Carla T, Marcelo BJ, Edmar A, Adib DJ: Transxiphoid Approach without Median Sternotomy for the Repair of Atrial Septal Defects. Ann Thorac Surg. 1998, 65: 771-774. 10.1016/S0003-4975(97)01433-1.
Lin PJ, Chang CH, Chu JJ, Liu HP, Tsai FC, Su WJ, Yang MW, Peter PC: Minimally Invasive Cardiac Surgical Techniques in the Closure of Ventricular Septal Defect: An Alternative Approach. Ann Thorac Surg. 1998, 65: 165-169. 10.1016/S0003-4975(97)01109-0.
Guo QK, Lu ZQ, Cheng SF, Cao Y, Zhao YH, Zhang C, Zhang YL: Off-pump occlusion of trans-thoracic minimal invasive surgery (OPOTTMIS) on simple Congenital Heart Defects (ASD, VSD and PDA) attached consecutive 210 cases report: A single institute experience. J Cardiothorac Surg. 2011, 6 (48): 1-9.
Ulf AR, Gerhard WG, Georg M, Armin K, Uwe S, Roland H, Anton M: Correction of simple Congenital Heart Defects in infants and children through a minithoracotomy. Ann Thorac Surg. 2001, 72 (5): 1645-1649. 10.1016/S0003-4975(01)03051-X.
Beşoğul Y, Ozcan V, Yavuz T, Tünerir B, Aslan R: Experiments on minimally invasive open heart surgery using right Anterolateral Minithoracotomy. Anadolu Kardiyol Derg. 2002, 2 (4): 309-12.
Liu YL, Zhang HJ, Sun HS, Li SJ, Yan J, Su JW, Yu CT: Repair of cardiac defects through a shorter right lateral thoracotomy in children. Ann Thorac Surg. 2000, 70 (3): 738-41. 10.1016/S0003-4975(00)01407-7.
Marcelo GA, Manuel H, Axel H, Roswitha S, Detlev MA, Thea K: One-Lung Ventilation with High Tidal Volumes and Zero Positive End-Expiratory Pressure Is Injurious in the Isolated Rabbit Lung Model. Anesth Analg. 2003, 96: 220-8.
Gothard J: Lung injury after thoracic surgery and one-lung ventilation. Curr Opin Anesthesiol. 2006, 19 (1): 5-10. 10.1097/01.aco.0000192783.40021.c1.
Carmen U, Ignacio C, Victoria M: Pressure-Controlled Versus Volume-Controlled Ventilation during One-Lung Ventilation for Thoracic Surgery. Anesth Analg. 2007, 104 (5): 1029-1033. 10.1213/01.ane.0000260313.63893.2f.
David M, Probal G, Sergey P: Minimally Invasive Congenital Cardiac Surgery Through Right Anterior Minithoracotomy Approach. Ann Thorac Surg. 2008, 85 (3): 831-835. 3.
Khoshbin E, Prayaga S, Kinsella J, Sutherland FWH: Mini-sternotomy for aortic valve replacement reduces the length of stay in the cardiac intensive care unit: meta-analysis of randomized controlled trials. BMJ Open. 2011, 1: e000266-10.1136/bmjopen-2011-000266.
Morgan LB, Stephen HM, Thoralf MS, Hartzell VS: Ministernotomy versus conventional sternotomy for aortic valve replacement: a systematic review and meta-analysis. J Thorac Cardiovasc Surg. 2009, 137: 670-9.e5. 10.1016/j.jtcvs.2008.08.010.
The authors declare that they have no competing interests.
CD and ZHS carried out to study design. CD and CMW carried out data analysis and manuscript writing. ZHS, AQD, MJK, DMJ and JFQ participated in writing the manuscript. All authors read and approved the final manuscript.
